PNEUMATIC CONVEYING DIVERTER VALVESOur Diverter Valve Ranges
Directory of Diverter Valves , high performance diverter valves, single channel or double channel diverter valves, two way diverters, ball type diverters, diverting and selector valves, two way diverters, pneumatic line diverter, gravity and conveying diverters, and more ters, ball type diverters, diverting and selector valves, two way diverters, pneumatic line diverter, gravity and conveying diverter valves, and more
Pneumatic Diverter Valve Applications
It is used to send all kinds of powder material in granule form from one point to x number of different points particularly in the food industry as well as plastics, pharmaceutics and chemical industries. We have two types of solutions, namely, 60.3,76.1,89,101mm and 114mm stainless AISI 304 inox and Aluminum Cast flap.Stainless Steel Diverter Valve for
Powders and Granular Products
Single channel diverter valve in conical design for easier dismantling
Diverter Valves direct material from one source to multiple destinations and make sure that conveying air and product are forwarded with low resistance
Diverter valve for pneumatic conveying applications
This precision machined valve is designed to prevent contamination and provide line switching for either dilute or dense phase conveying. The two-way DSR-DIVERT valve operates as a 1 to 2 way diverting valve or a 2 to 1 way converging valve in a pneumatic conveying system for powdered or granular materials.
The DSR-DIVERT operates by rotating the tunnel forward and backwards in the housing by the actuator. This positions the tunnel to either the divert ports or the straight-through ports. The tunnel is supported by shaft bearings in the two end plates and between two thrust washers. The tunnel has position stops located in the housing for fine adjustment of both conveying positions.
Tunnel position, whether straight-through or divert, indication is made by two proximity switches mounted in the housing, sensing directly off of the tunnel. A positive seal is made through the selected position between the tunnel bore and the housing interior by seal rings. During tunnel position changes, the seal rings act like a wiper to clean the surface of the tunnel.
Tunnel rotates 30° port to port which prevents contamination
2-way switching capability for either dilute or dense phase pneumatic conveying applications
Can operate at convey line pressures up to 110 psi
Aluminum housing and tunnel are hard anodized for wear resistance
Powders and Granular ProductsSingle channel diverter valve in conical design for easier dismantling
Diverter Valves direct material from one source to multiple destinations and make sure that conveying air and product are forwarded with low resistance.
Choice of materials can cater for the majority of applications. Materials available are: cast iron, stainless steel, aluminium or chemically nickel plated. By coating the body and internal components mildly-abrasive products can be handled. Actuation can be handled manually or with pneumatic air cylinder (direct- or in-direct driven). All diverter valves can be executed with limit switches to indicate open/closed conditions. Flap type diverter valves are available in 8 sizes ranging from 50 up to 300 mm with circular connection flanges

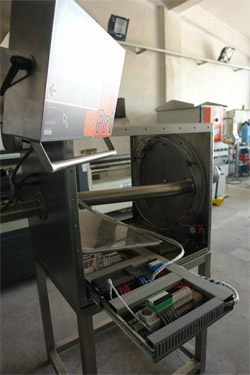

MULTIPORT & DIVERTER VALVE

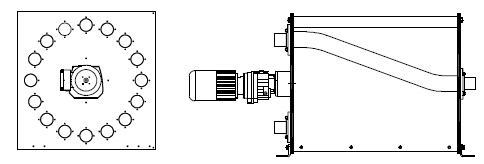

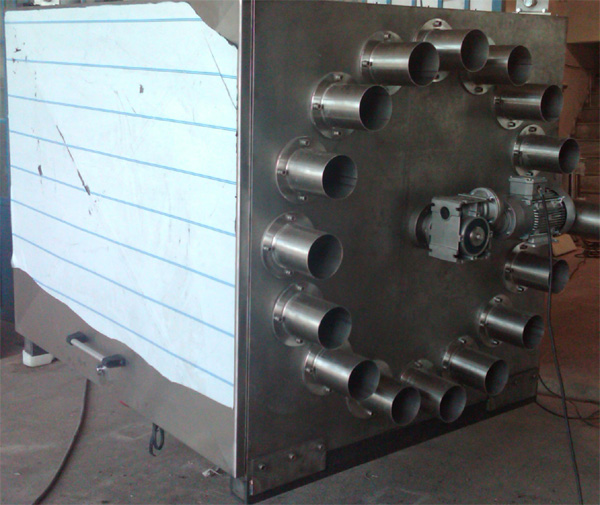

Multiport-Multi Way Valve-Diverter valve applications are used as automation and application provides comfort in terms fo follow-up when more than one two-directional valve proves to be insufficient. It works as sort of collector. However, single-directional valves acts like secondary roads departing from a motorway. Single handicap of the multiport applications is that if the process continues in the same direction, more pipes should be used; still these two applications have different fields of use. It is possible to produce specific solutions for all pipes of AISI304 76.1mm and 114mm having one input and 4,6,8,10,12,14… outputs according to DN standard.
• Easy cleaning
• Modular design
• Multiple installation options
• Parts interchangeable between models
• No Motor Control Centre (MCC)
• Visibility of internal components
(via three windows)
• Designed to comply with
Rotary Tube Selector Valves are used in
powder pneumatic transport to divert
product flow from single source to
multiple destinations. Flow can also be converged from multiple lines into one line. Multiport Rotary Tube Selector Valves are often used to replace a series of twoway valves, thereby simplifying the system, and reducing equipment footprint. The DOSERAY Rotary Tube Selector Valve brings a new level of innovation and design to an integral component of a powder conveying system. The enhanced structural layout provides greater strength and rigidity, allowing for regular and reliable operation when changing powder destinations. The Rotary Tube Selector Valve modular design is available in 2 through to 16 port versions with 3” to 6” pipe configuration. Any of the models can be hand demountable and is manually cleanable.
Slıde gate dıveter valves
• Optimal sealing
• Simple construction
• Minimal pressure loss
• Available with flange or pipe fittings
• Flanges drilled in accordance with PN10,
ANSI 150 lbs and JIS
• Cast iron, aluminium or 316 stainless steel
